LFDY01-1离子风枪是一款手持式的静电消除专用设备。属喷嘴式除静电产品的一种。具有安装简易、工作安全稳定、消除静电速度快的特点。特别适合于各种卷绕式机器和印刷机器以及流水线上使用。
第一节：作用原理
LFDY01-1离子风枪产生大量的带有正负电荷的气团，并用压缩空气快速吹出，将经过它离子辐射区内的物体上所带的电荷中和掉。当物体表面所带为负电荷时，它会吸引辐射区内的正电荷，当物体表面所带为正电荷时，它会吸引辐射区内的负电荷，从而使物体表面上的静电被中和，达到消除静电的目的。
SECTION1:DESCRIPTION
Thechargesproducedwhenobjectisbeingremoved,rubbed,squeezedorinducedinindustryprocess.Whenthiskindchargeattainsmoreandmore,thestaticelectricityadsorptionswilltakeplace,evendischargeelectricitywillappearwithaspark.Thisisdangerousforindustrialproductionsuchasadhere,exclude,electricityshockorexplode.Theionizingairgunproducesanairflowthatisrichinpositiveandnegativeions.Directingtheairflowonanobjectthathasastaticelectricitychargewillneutralizethecharge.Iftheobjecthasapositivestaticcharge,itwilldrawnegativeionsfromtheairflow.Iftheobjecthasanegativestaticcharge,itwilldrawpositiveionsfromtheairflow.Theionsareattractedtotheoppositelychargedobjectandneutralizetheelectrostaticchargeontheobject.
第二节：产品特点
1．中和静电迅速。
2．工作性能稳定安全。
3．安装操作简单方便。
4．风枪有良好的接地保护。
5．良好的残余电压控制（残余电压为+/-10v）。
SECTION 2: FEATURES
1． Rapidly neutralizes static charges.
2． Covers an extended area with ionized air.
3． Wind range of air flow.
4． Durable, electrically grounded ensure.
5． Low balance voltage (DY01-1 +/-10v).
第三节：技术参数
使用电压：5600V/50Hz
消耗电流：≤300uA
空气流量：>300CFM（5KgF/CM2）
使用温度：32oF(0oC)~122oF(50oC)
压缩气压力：3~5Kg/cm2
臭氧含量：0.03PPM(6”FRONT)
散电时间：
*静电消除时间符合ESD标准,静电消除时间是从测试电压为1000v~100v测得。
*测试仪器使用ME268A静电综合测试仪。
*测试数据会因周围空气的温湿变化而有差异。
SECTION3：SPECIFICATIONS
VOLTAGE：5600V/50Hz
CURRENT：≤300uA
AIRFLOW:>300CFM（5KgF/CM2）
TEMPERATURE:32oF(0oC)~122oF(50oC)OZONEPRODUCTION:0.03PPM(6”FRONT)
*OffsetvoltageanddischargetimedeterminedasperESDAssociationStandardNo.3using6”x6”,20pfplate(chargeplatemonitor).Dischargetimesareinsecondsfrom1000v~100v.
*TestdataavailableusingME268Achargeplateanalyzer.
*Testfiguresaresubjecttothevariationintheatmosphericconditions.
第四节:安全
4.1安装操作前须读操作说明书。
4.2操作前必需可靠接地。
4.3不可在有可燃性气体和粉尘环境下使用。
4.4保持风枪干燥,无油和积灰。
4.5不得擅自进行修理和改装。
SECTION4:SAFETY
4.1Readallinstructionsbeforeproceedingwithinstallationoroperation.failuretofollowinstructionsmayresultindamagetotheionizerand/orpersonalinjury.
4.2Thepowerunitissuppliedwitha3-pronggroundingplug,whichmustbeinsertedinanappropriate,properlywired,andgroundedreceptacle.Donotdefeattheelectricalground,groundingandproperwiringarerequiredforproperoperation.
4.3Donotoperateunitinflammableorexplosiveatmospheres.
4.4keeptheunitdry.
4.5Afactory-qualifiedservicetechnicianmustperformcomponent
第五节:安装及操作:

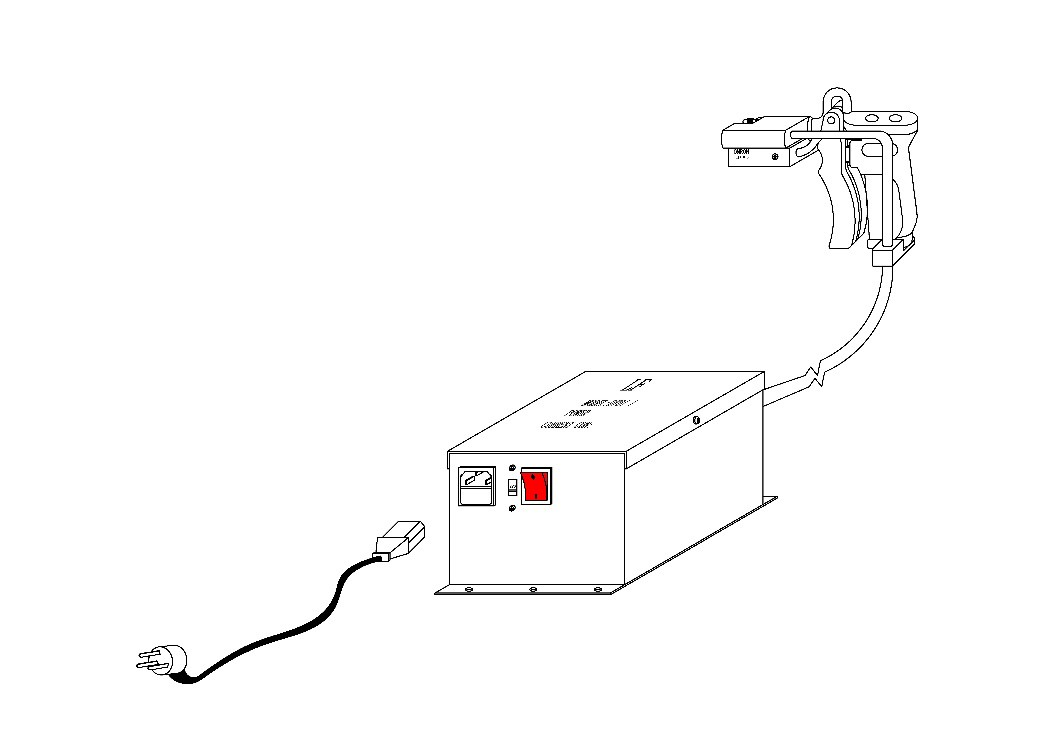

LFDY01-1离子风枪要配备DY01-1高压发生器一起使用。将风枪连接线末端带旋钮的插头插入高压发生器高压输出插孔，旋钮顺时针旋转到头，然后将风枪连线的接地线连接到高压发生器外侧的接地柱上，并确认接地良好后，将高压发生器的电源插头插入带有接地线的插座上（注意高压发生器的使用电压），将风枪电源固定安装到合适的位
置，插上压缩气管，打开高压发生器电源即可工作。离子风枪在使用一段时间后,离子针周围会发生积尘,请定期进行清洁.清洁时要关
断电源。
SECTION5:INSTALLATION
Air
Thecompressedairsupplymustbecleananddry.Water,debrisoroilintheairwilldamagethisproduct.Ourwarrantydoesnotcoverthismisuse.Theairpressureshouldbereducedtotheminimumrequiredtodothejob.Excessairuseiswastefulanddilutestheionizationandincreasesthenoiselevelunnecessarily.
Highvoltage
TheLFDY01-1IonizingAirGunisdesignedtoworkwiththeTheLFDY01-1powersupplyat5.6kvA.C.output.Caremustbetakennottoconnecttoavoltageotherthanthe4.6kvspecified,otherwisepermanentdamagetotheproductmayoccur.NB:Donotoperate
inflammableorexplosiveatmospheres.PleaseensurethattheH.T.cablesecuringglandisfirmlytightened–Thisinsuresagoodearthconnection.Failuretofitsecurelywillpreventionizationandmayresultinthepistolbecominglive,whichcancauseoperatorshocks–Whilstharmlessthisexperiencecanbeunpleasant.
Maintenance
Keeptheguncleanandfreefromoil,waterandparticlecontamination.Useairdryingandcleaningfilterregulatorwith5micronfiltration.Ensurethatallconnections,pipeworkandfilterregulatorswillallowminimum15CFMofairflow.Cleanandpurgefilterregulatorsperiodicallyandcheckforcontaminationintheairdeliverypipe.Cleanaroundtheelectrodepinwithapipecleanerorcylindricalsoftbrassbrush.Ensuretheplasticinnerliningisfreefromgreyorblackcarbonizedresidue.Thepointoftheelectrodepincanbecleanedbypushingapencilenderaserontotheelectrodepinandrotating.Blowouttheloosedebrisandre-fitthenozzlecapbeforere-connectingthehighvoltagesupplyandoperating.
第六节:产品保修与服务
LF严格遵守：产品质量第一，信益第一，客户至上的宗旨，对斯蒂克产品实行以下承诺：
1.保用期凡本公司出售的产品保用期为一年，自出售日起一年内因产品自身机件、材料及工艺问题造成的质量问题，本公司免费修理。
2.保用期后的服务凡本公司出售的产品保用期过后仍负责对产品的免人工费修理，以保护客户的利益。
SECTION 6: WARRANTY
1.warranty's period
LF warrants its products to be defects in components, workmanship, or materials for a period of one year from of purchase. This warranty does not apply to any physical or electrical damage caused by misuse, abuse or negligence. Any unit with altered or removed serial number is ineligible for warranty.
2.service after warranty period
after the warranty period, we only take in the cost of material to repair the LF's products 3．Never open the case of the unit. Or warranty is voided
information in this document is subject to change without notice and does not represent a commitment on the LF service
